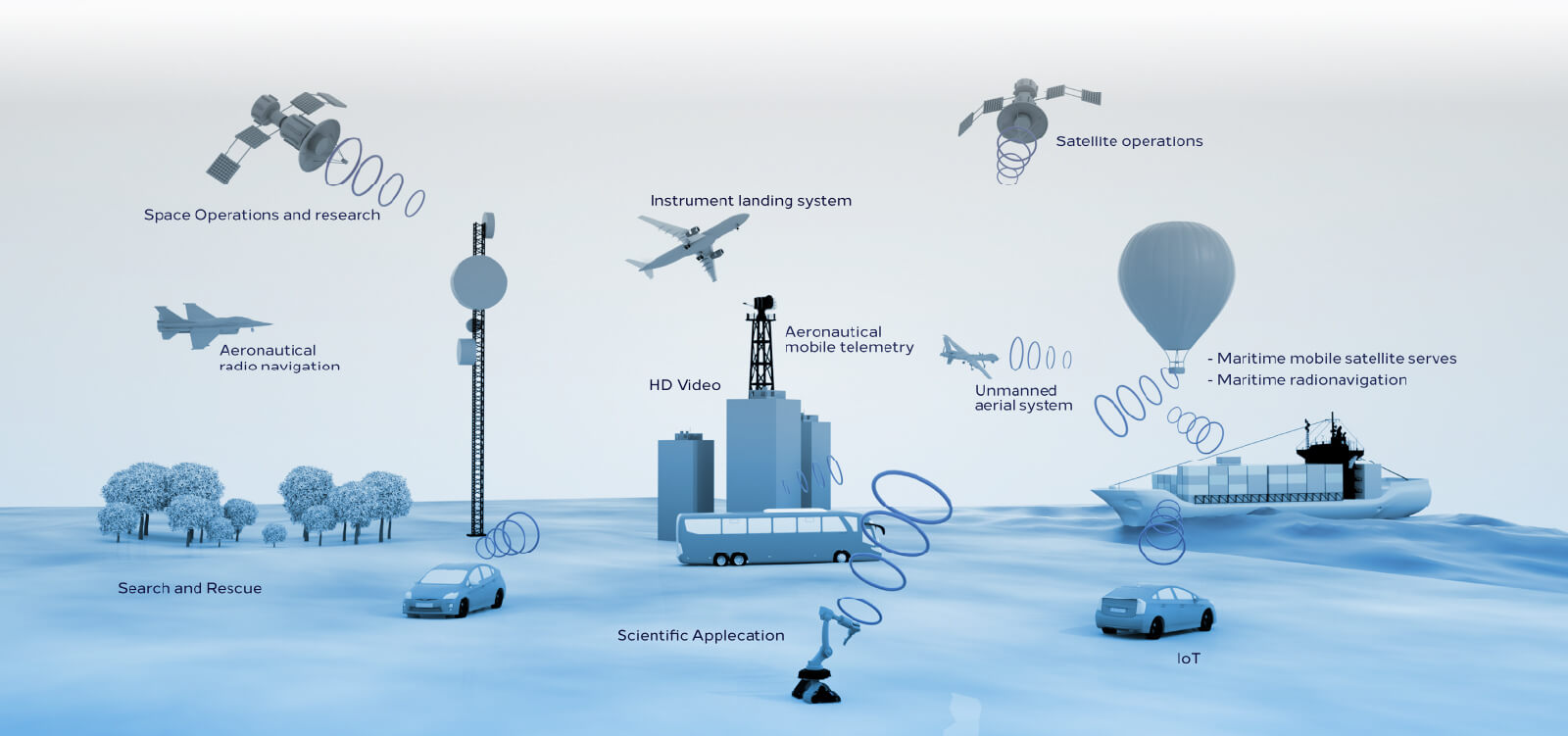

Air-borne is a heterogeneous networks that are engineered to utilize satellites, high-altitude platforms (HAPs), and low-altitude platforms (LAPs) to build communication access platforms. Furthermore, A2G is a special application of air-born that provide internet on civilian aircraft via terrestrial network.

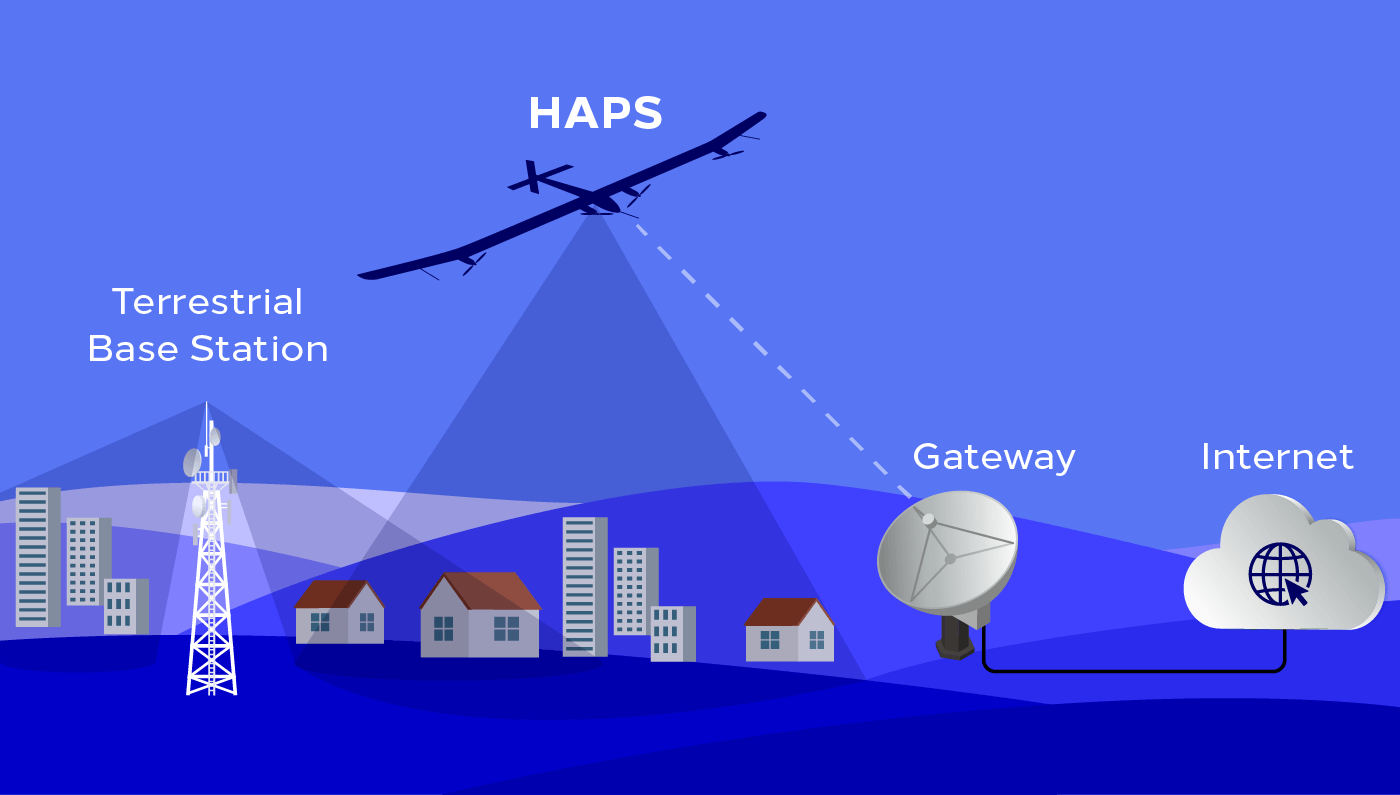

High Altitude Platform Stations (HAPS)

HAPS are radio stations located on an object that floats at the stratosphere layer and at a specified, nominal, fixed point relative to the Earth, providing telecommunication services coverage over a wide geographical range, with high quality signal.

About NTN

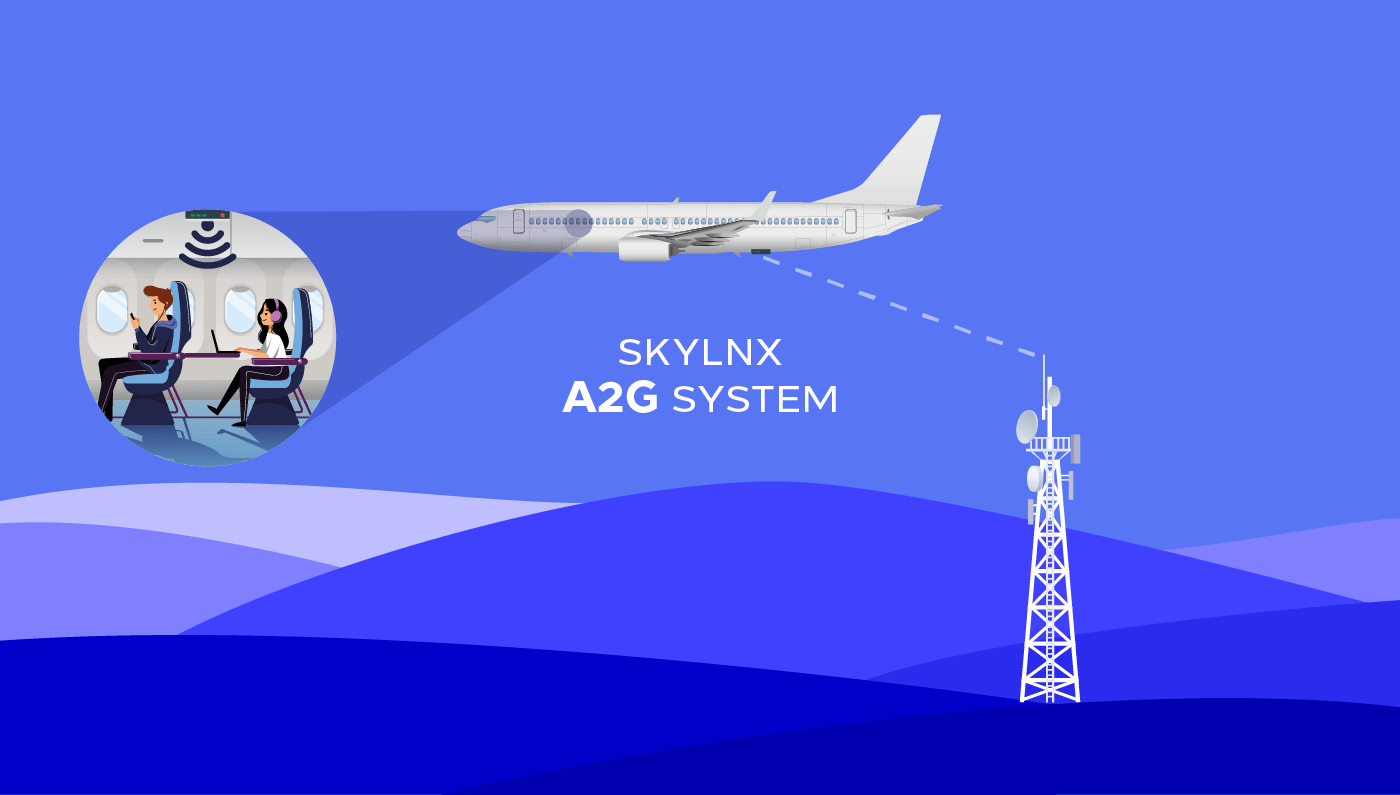

Air-to-Ground (A2G)

About NTN

Air-to-Ground is a Two-way communication between aircraft and stations or locations on the surface of the earth.

The ground network consists of A2G base stations with skywards-pointing antennas optimized for airspace coverage, which create very large cells in the sky. Given that, unlike on the ground, radio signals can freely propagate.

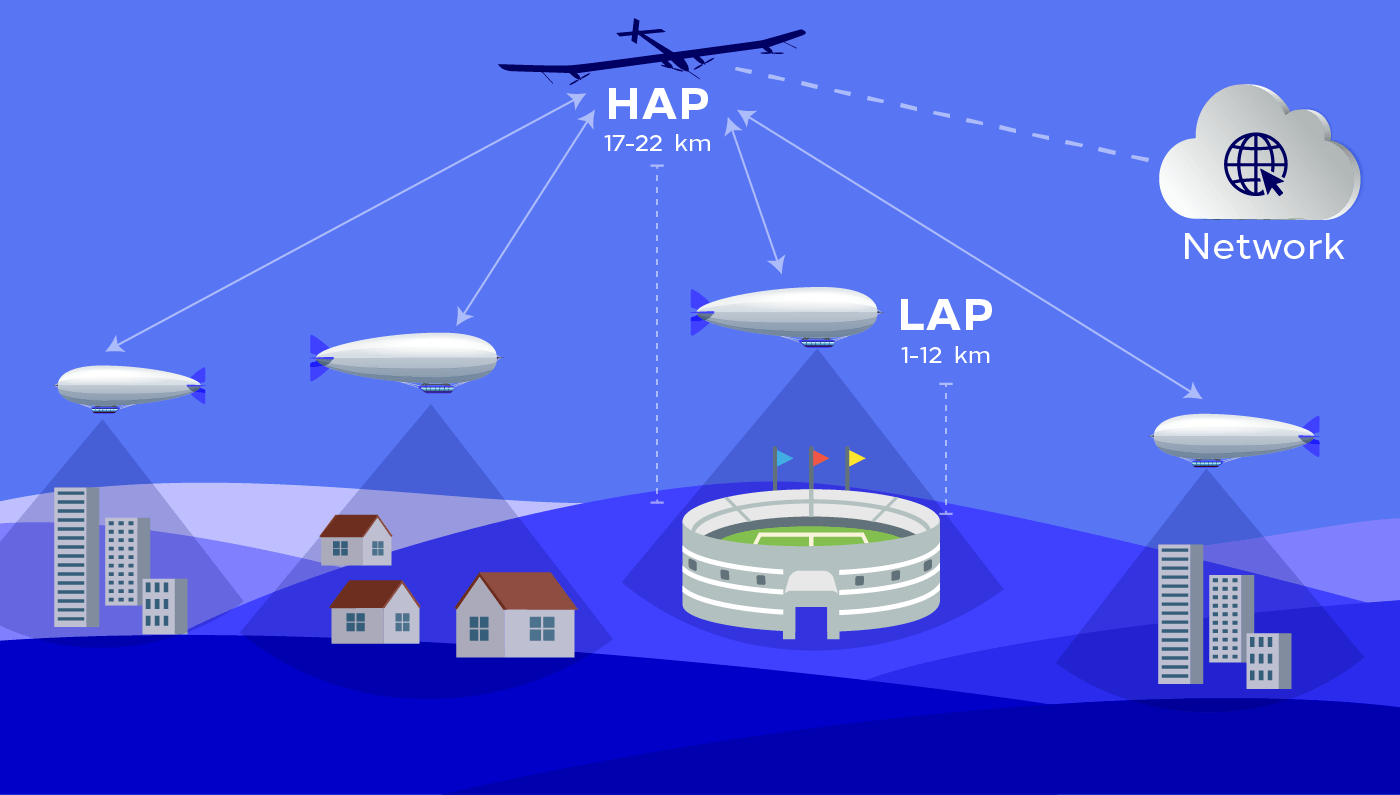

Low Altitude Platforms (LAPS)

A LAP is an object (may be a UAV or balloon) that have the capability of flying at low altitudes (e.g., a few hundreds of meters) for a sufficient endurance for completing a mission.

About NTN

Table Matrix (LAPS vs HAPS)

Performance HAP LAP
Footprint large small
Vulnerability to natural disasters reduced reduced
Overflight restricted restricted
Responsiveness and flexibility medium rapid
Communication persistence long short
Propagation delay short short
Broadcast/ multicast capable capable
Cost medium low
